FLEDA Technology Announce High Wattage Chip-on-board UV LED Solutions
飛瑞達科技提供高瓦數COB型UV LED解決方案
Issured Date：2013-07-02

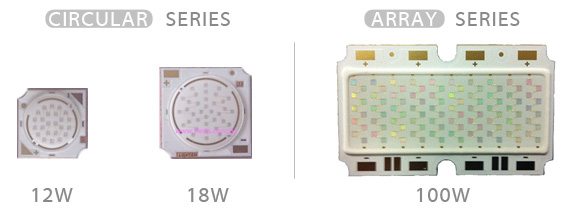

FLEDA Technology - located in TAIWAN, focusing on the chip-on-board technology of LED package with Copper-base and supplying the high wattage, high quality and high reliability LED lighting products. The unique surface technology for the Copper-base, enhance the reflective of light and the light efficacy of white LED can reach to 120lm/W, and decrease light decay by the surface damage and have 30,000hrs long life. Now the 6W-320W Chip-on-board type of LED products are available.
飛瑞達科技座落於台灣，專注在銅基板COB型LED技術的開發，提供客戶高光效，高品質，高信賴性LED照明產品。飛瑞達科技的銅基板採用獨特的表面反光技術，使得高瓦數COB型白光光效可達120lm/W以上，並有效減少光衰，延長LED壽命。可提供6W~320W COB型LED產品。
▲160W Chip-on-board UV LED with Copper-base(395nm)
160W 銅基板COB型UV LED(395nm)

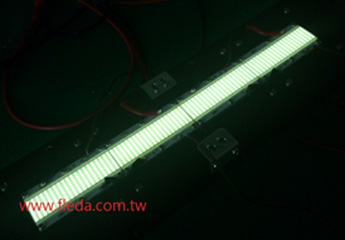

▲The "LINEAR" application of 160W Chip-on-board UV LED(365nm)
365nm 160W COB型UV LED應用
UV LED是目前LED大廠近年來努力的目標，是繼LED照明應用後的另一個LED產業的重要發展。飛瑞達科技利用自有的銅基板COB型高瓦數封裝技術，成功開發出無縫接邊型高瓦數UV LED，可依客戶實際需求自行組裝高密度線性UV LED光源模組，進而取代傳統UV水銀燈管，在光固化，印刷，3D列印上的應用。
The unique "LINE" series UV LED maintain a very high level of brightness that is not possible with conventional surface mount LED based illuminators. To achieve this level of brightness, we place 45mil or 48mil chip size up to 160 chip-on-board LEDs that are closely spaced in a 56mm(2.2 in) line in a package and are available in a wide range (360-430nm) of wavelengths and can be operated in continuous (cw) or pulsed mode. The "LINE" series UV LED delivers a variety of products with varying peak irradiance to match specific application and machine requirements. Peak irradiance is the maximum measured irradiance at the output of the UV emitting window, and 2-8W/cm2 are available.
飛瑞達科技之COB型UV LED，採用銅基板封裝，可有效解決晶片散熱不良造成熱光衰過大問題，並以特殊封裝設計提供客製化產品，解決客戶高密度光源的需求。可提供 2W / cm2, 4W / cm2, 6W / cm2, 8W / cm2之UV LED產品，可用於3D列印，光固化，光觸媒等產品上。飛瑞達科技提供全方位之UV LED解決方案，可提供3020 / 5630 / K1 emitter / COB型之裝型式，並可依客戶需求選擇365nm / 375nm / 385nm / 395nm / 405nm / 415nm各波段之UV LED，應用於光固化、醫學(美甲燈)、光觸媒、汽車工業及精緻農業花卉用途等特殊照明之新興應用市場。
如有相關產品需求，請與業務人員聯絡。
Call Tel：+886-2-22251856 or visit our web site：http://www.fleda.com.tw
飛瑞達科技座落於台灣，專注在銅基板COB型LED技術的開發，提供客戶高光效，高品質，高信賴性LED照明產品。飛瑞達科技的銅基板採用獨特的表面反光技術，使得高瓦數COB型白光光效可達120lm/W以上，並有效減少光衰，延長LED壽命。可提供6W~320W COB型LED產品。
▲160W Chip-on-board UV LED with Copper-base(395nm)
160W 銅基板COB型UV LED(395nm)
▲The "LINEAR" application of 160W Chip-on-board UV LED(365nm)
365nm 160W COB型UV LED應用
UV LED是目前LED大廠近年來努力的目標，是繼LED照明應用後的另一個LED產業的重要發展。飛瑞達科技利用自有的銅基板COB型高瓦數封裝技術，成功開發出無縫接邊型高瓦數UV LED，可依客戶實際需求自行組裝高密度線性UV LED光源模組，進而取代傳統UV水銀燈管，在光固化，印刷，3D列印上的應用。
The unique "LINE" series UV LED maintain a very high level of brightness that is not possible with conventional surface mount LED based illuminators. To achieve this level of brightness, we place 45mil or 48mil chip size up to 160 chip-on-board LEDs that are closely spaced in a 56mm(2.2 in) line in a package and are available in a wide range (360-430nm) of wavelengths and can be operated in continuous (cw) or pulsed mode. The "LINE" series UV LED delivers a variety of products with varying peak irradiance to match specific application and machine requirements. Peak irradiance is the maximum measured irradiance at the output of the UV emitting window, and 2-8W/cm2 are available.
飛瑞達科技之COB型UV LED，採用銅基板封裝，可有效解決晶片散熱不良造成熱光衰過大問題，並以特殊封裝設計提供客製化產品，解決客戶高密度光源的需求。可提供 2W / cm2, 4W / cm2, 6W / cm2, 8W / cm2之UV LED產品，可用於3D列印，光固化，光觸媒等產品上。飛瑞達科技提供全方位之UV LED解決方案，可提供3020 / 5630 / K1 emitter / COB型之裝型式，並可依客戶需求選擇365nm / 375nm / 385nm / 395nm / 405nm / 415nm各波段之UV LED，應用於光固化、醫學(美甲燈)、光觸媒、汽車工業及精緻農業花卉用途等特殊照明之新興應用市場。
如有相關產品需求，請與業務人員聯絡。
Call Tel：+886-2-22251856 or visit our web site：http://www.fleda.com.tw
